Cable One
Cable One

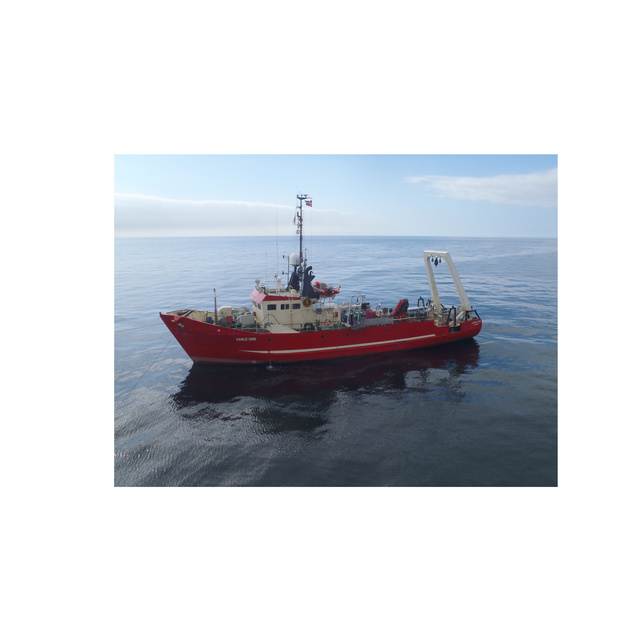

C/V Cable One is a Cable Laying and Offshore Diving Support Vessel. This multipurpose vessel can operate worldwide and is specialized in cable laying, -installation & -repairs, Surveys, ROV-work and offshore diving. The vessel is equipped with Dynamic Positioning and 4 Warp anchors for precise and accurate positioning and is capable of loading 250 tons of submarine fibre cables in its coil tank.
Diving Equipment installed on Cable One specifications.
See our gallery |
 |
Datasheet
| Information | Principal dimensions | |||||
| Type of Vessel | Cable Laying- and Offshore Diving Support Vessel, Unrestricted navigation | Length over all | 35,30 m | |||
| Dynamic Positioning | DP 1 | Breadth moulded | 9,50 m | |||
| Owner | JD Crafts A/S | Summer draught | 5,50 m | |||
| Operator | JD-Contractor A/S | Air draught | 23,40 m | |||
| Deck equipment | Gross Tonnage | 419 tonnes | ||||
| Anchors | 4 x Warping Winch (800m, 1t. anchors) for 4 point mooring | Accommodation | 15 (5 crew, 10 pax) | |||
| Deck crane | 1.7 T at 16 m | Main Engine | 1326 kW | |||
| A-Frame | SWL 25 t with 10 t towing winch | Auxiliary Power | 651 kW | |||
| Towing Arrangement | Towing Winch Min Break Load 10 T Bollard Pull 16 T |
Speed | 12 knots | |||
| Weather deck | 50 m2, up to 3 x 20’ containers | |||||
| When required the vessel can be equipped with: | The vessel is permanently equipped with: | |||||
| Work class ROVs and embedding systems that can be controlled from aboard the vessel | Complete diving systems with treatment and decompression chamber | |||||
| Cable laying systems, incl. inboard 250 t | Equipment for mix-gas diving, surface diving to 50 metres (Trimix) | |||||
| NaviPac Online and RTK GPS | ||||||
