C-Installer
C-Installer

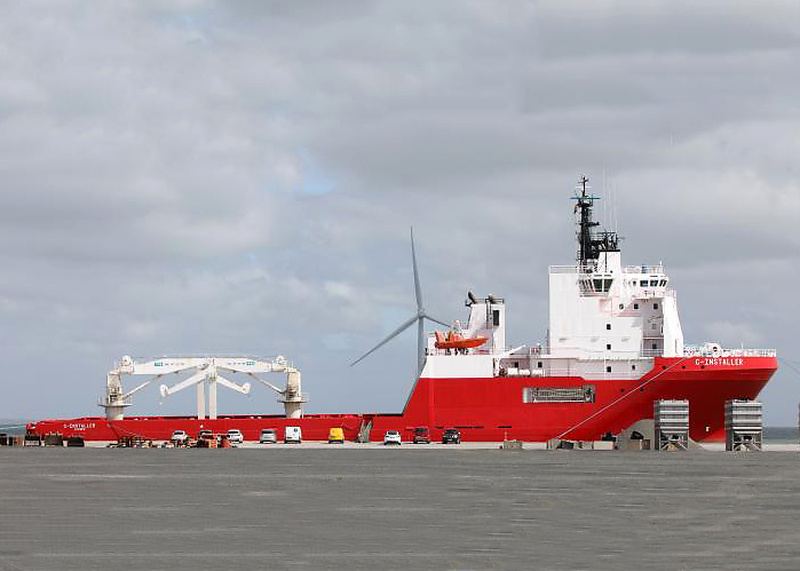

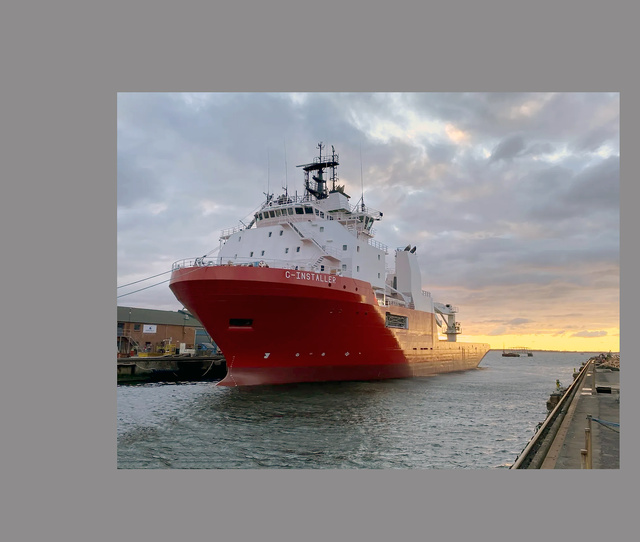

For offshore cable installation, ROV-Work, Seabed surveys, Cable repair, route clerance with a unique pull of 120 tons. JD-Contractor is operating the Subsea Construction Vessel ‘C-Installer’. The vessel is based on the Multipurpose PSV from Norway, design VS492. C-Installer can be mobilized with various equipment/setups for work at sea and for Subsea Construction.
Download brochureSee our gallery |
 |
Datasheet
| Information | Principal dimensions | ||||||
| Type of Vessel | Multipurpose PSV-Type Offshore Installation Subsea Construction Vessel. Ice-classed | Length over all | 93,3 m | ||||
| Dynamic Positioning | DP 2 | Breadth moulded | 22 m | ||||
| Owner | JD Crafts A/S | Depth Moulded | 8.6 m | ||||
| Operator | JD-Contractor A/S | Summer draught | 7.2 m (9.8 m with the Azimuth down) | ||||
| Air draught | 31.80 m | ||||||
| Deck equipment | Gross Tonnage | 5623.7 tonnes | |||||
| Towing Arrangement | The Maximum Bollard Pull (MBP) 120 T | Accommodation | 70 | ||||
| Crane capacities | Crane Stb 14t/14m Crane Ps 14t/14m A-Frame 30T (Optional) |
Main Engines | 2X 7920 kW | ||||
| Auxiliary power | 2X 6894 kW | ||||||
| Free deck area | 1043 m2 | Speed | Max 13.5 kn, ECO 11.5 kn | ||||
| When required the vessel can be equipped for: | |||||||
| Cable installations Cable Repairs Route Clearance Platform for subsea and ROV work Offshore surveys General supply duties |
|||||||
